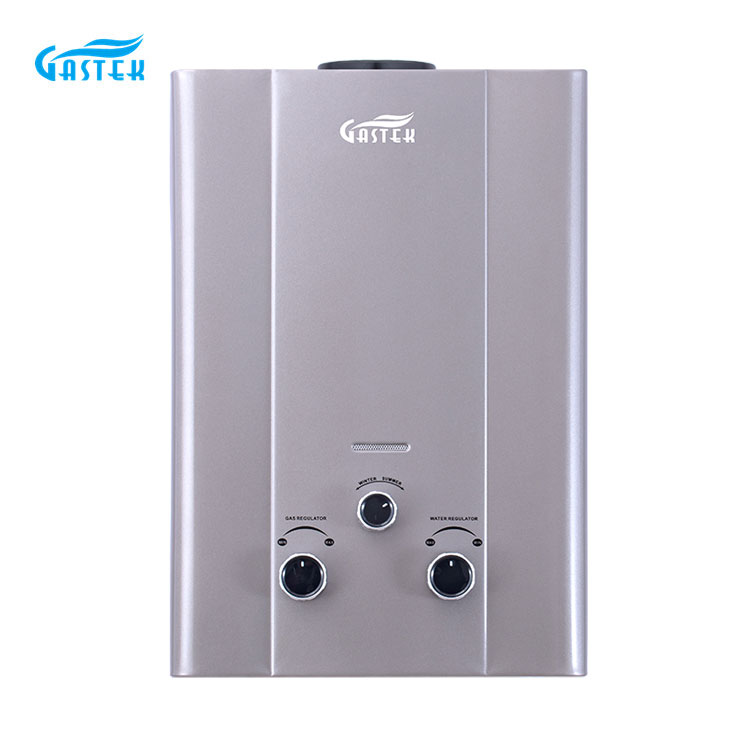

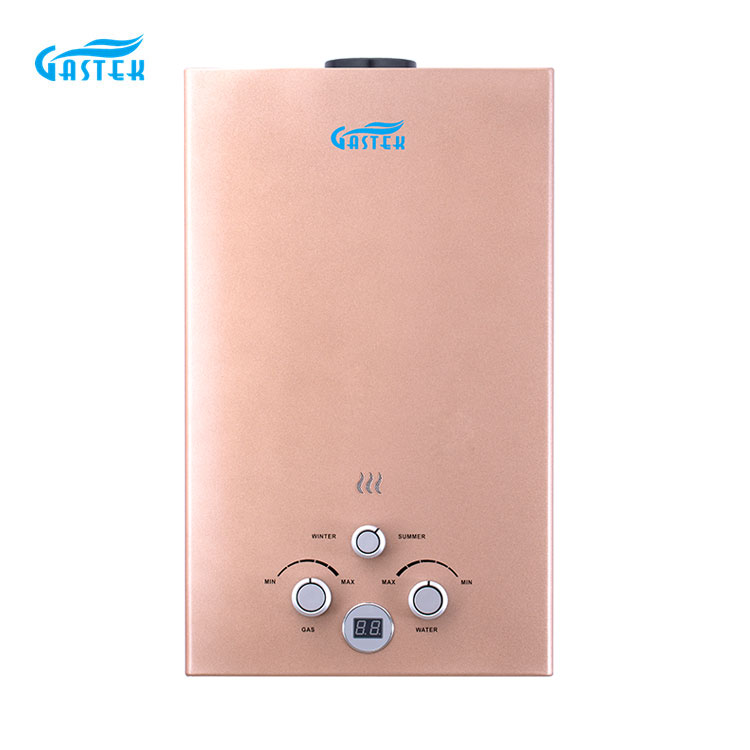

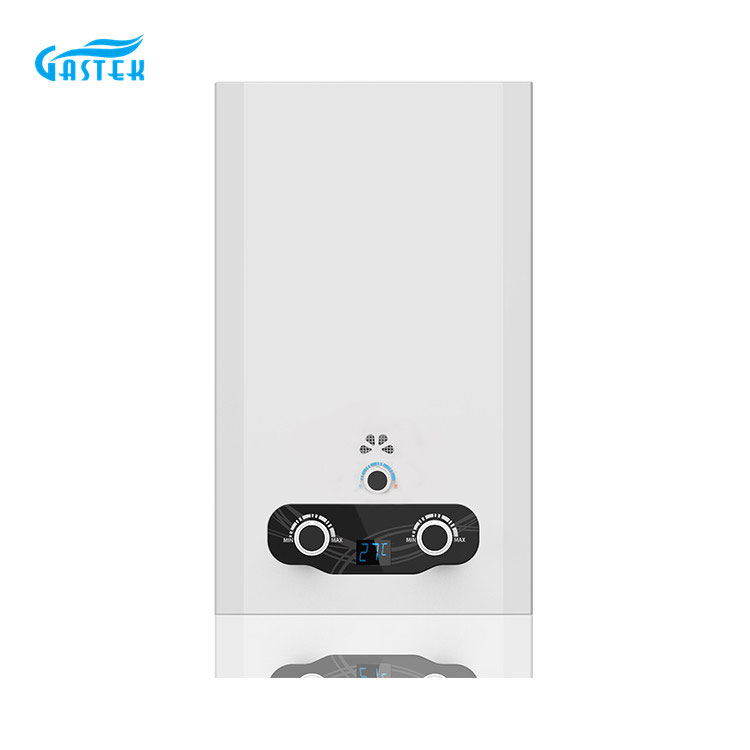

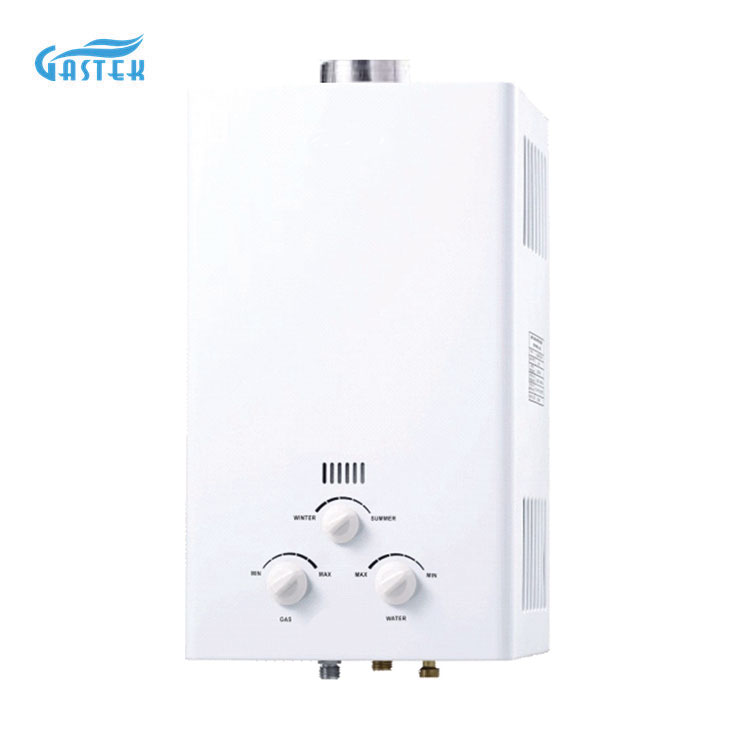

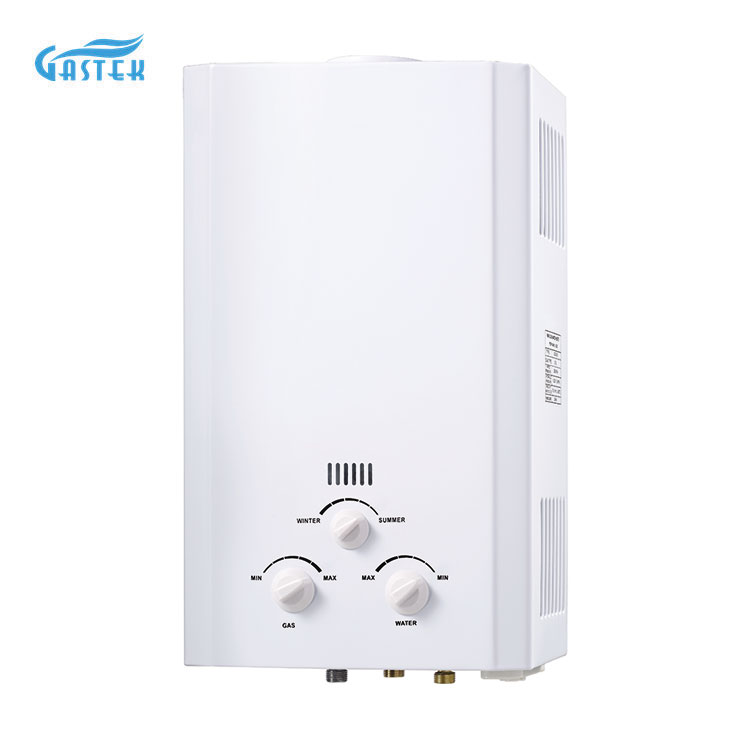

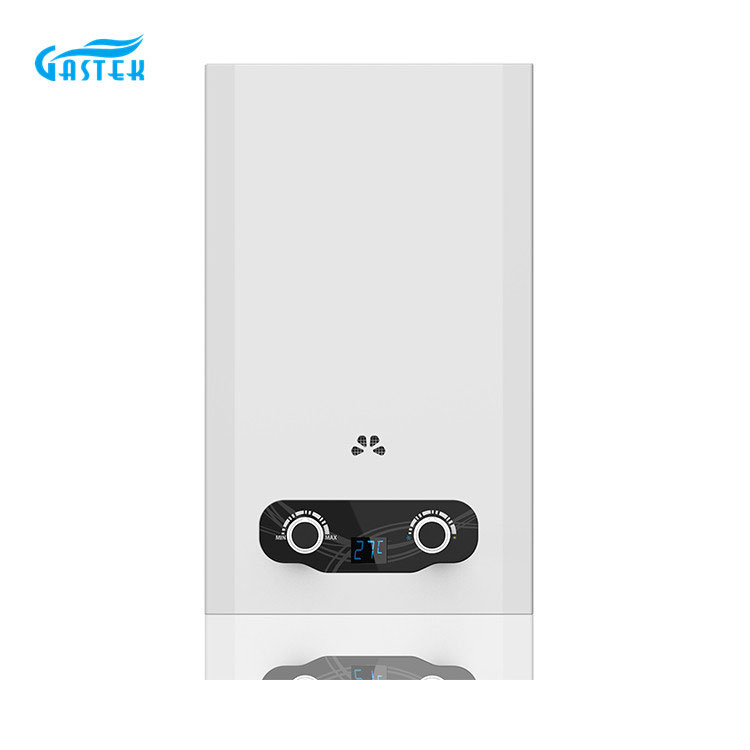

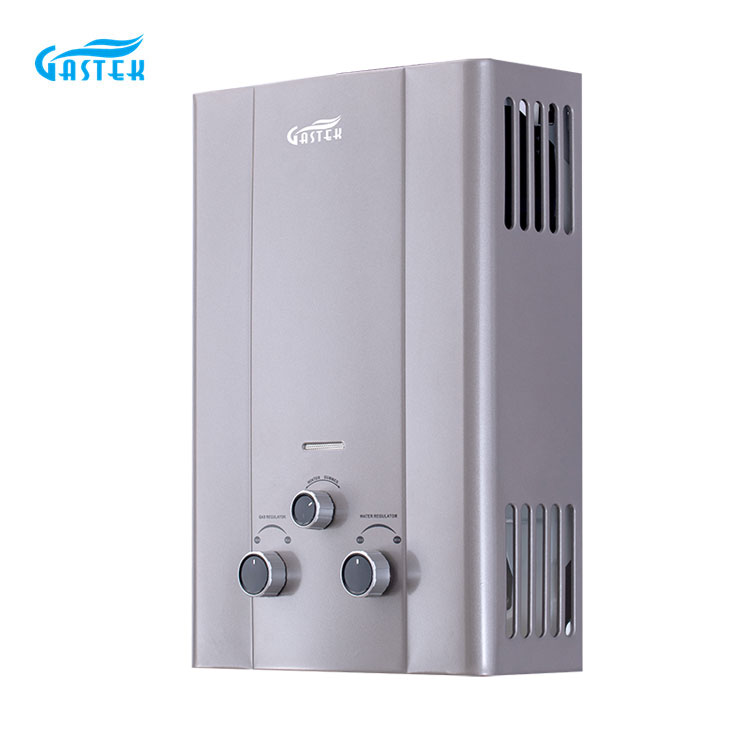

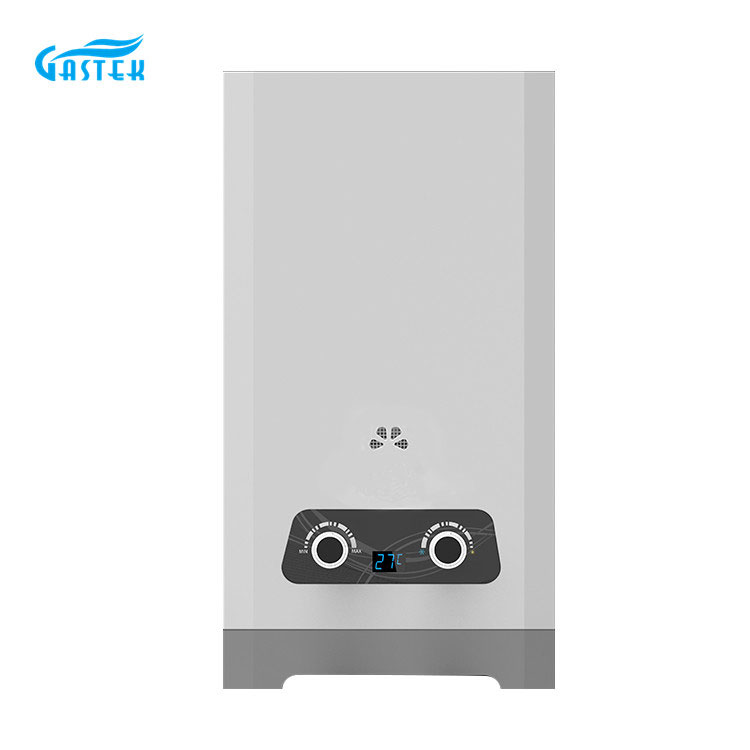

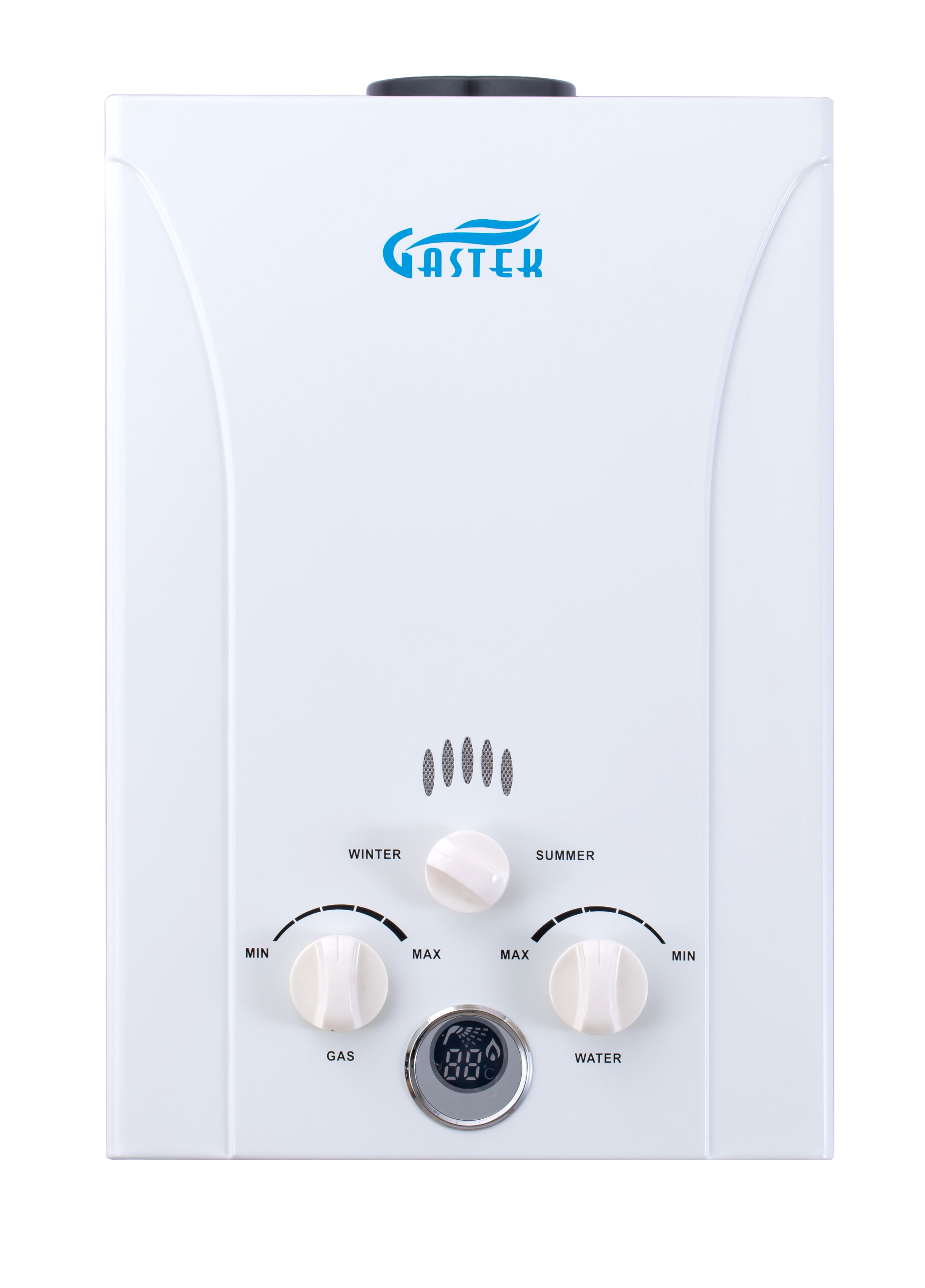

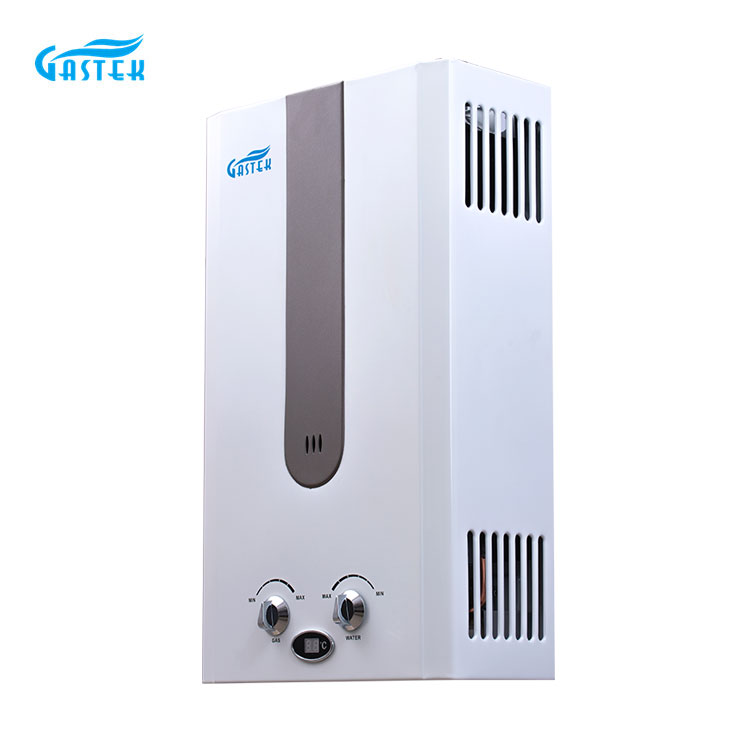

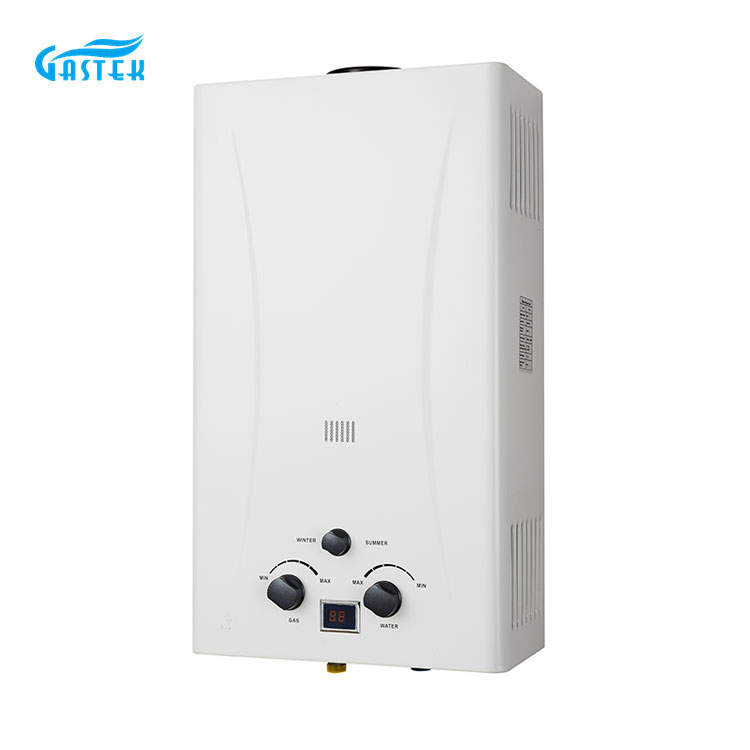

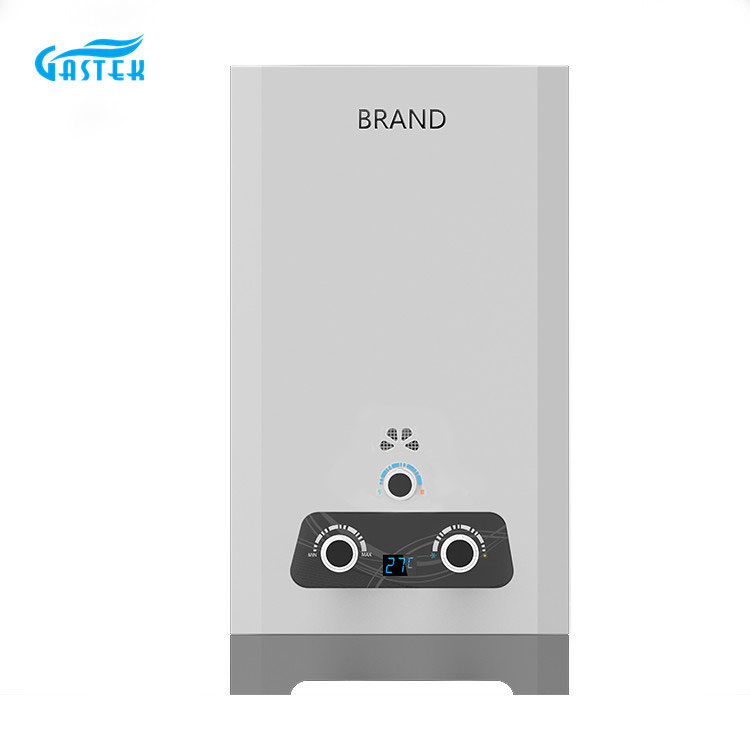

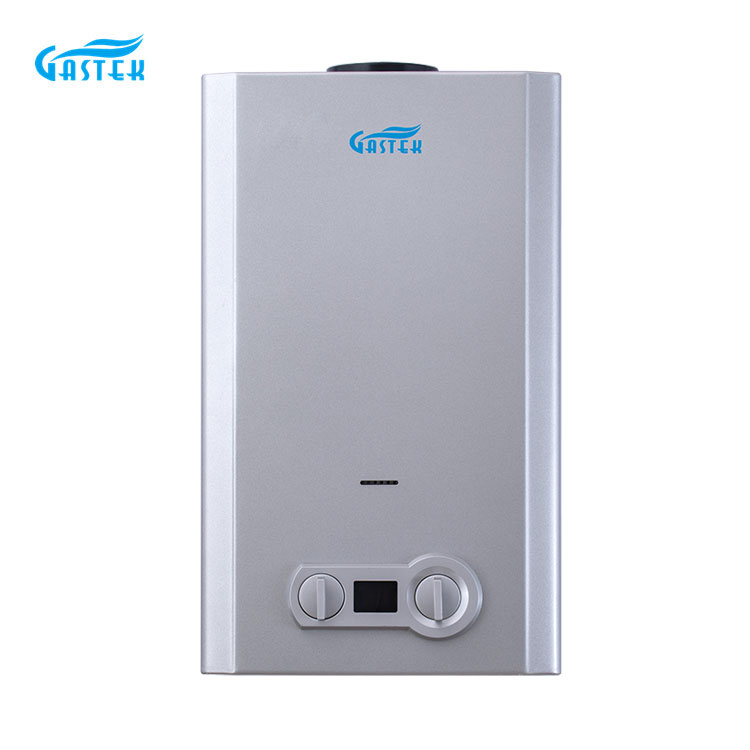

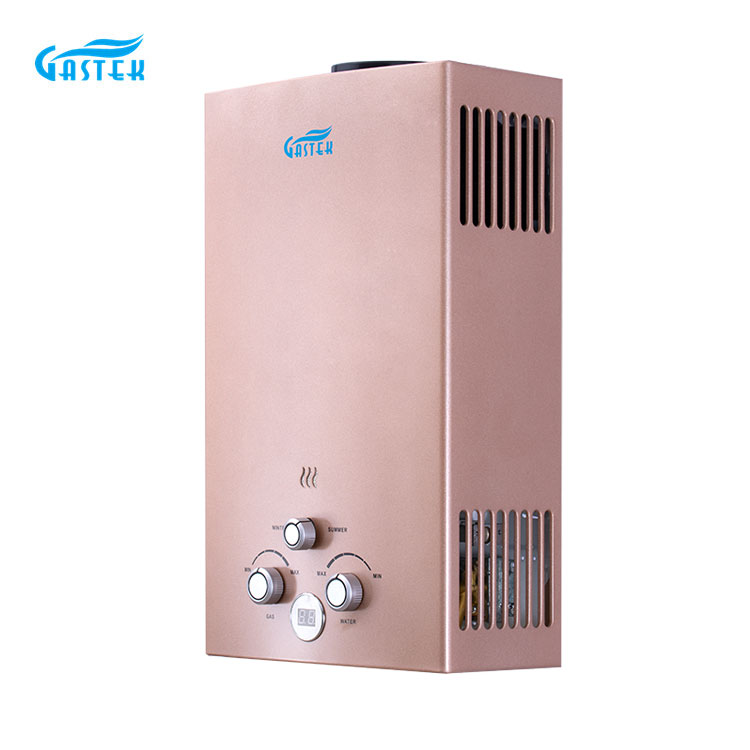

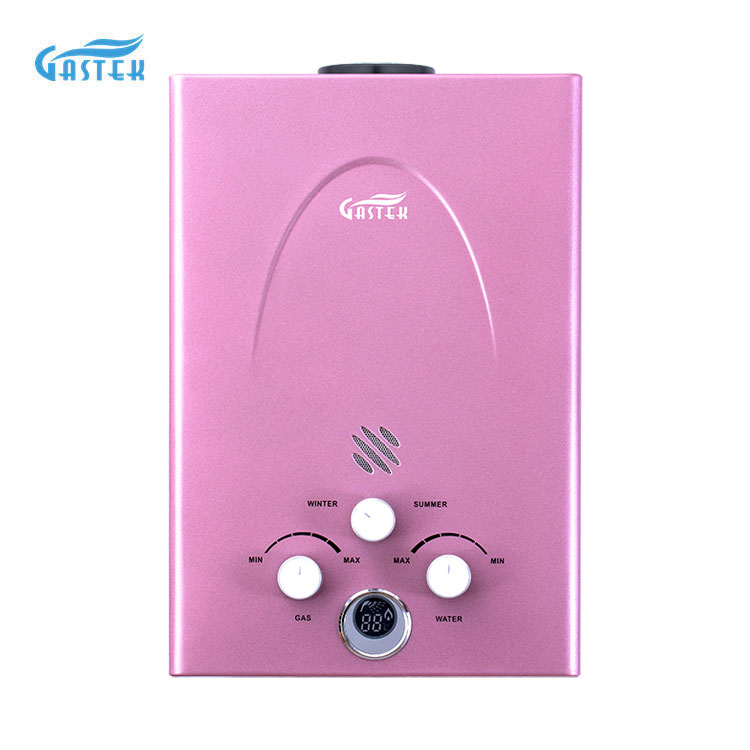

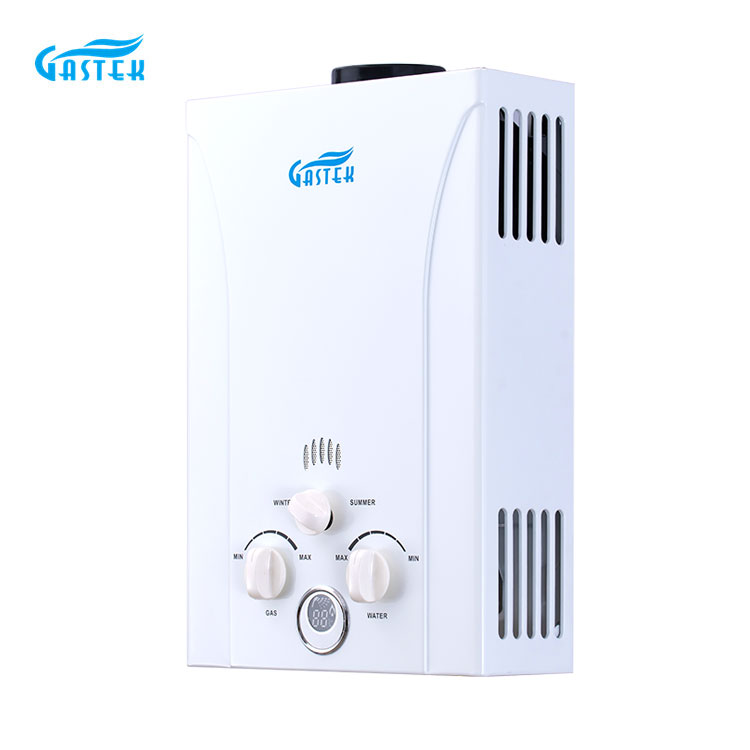

Common Flue Type Gas Water Heater

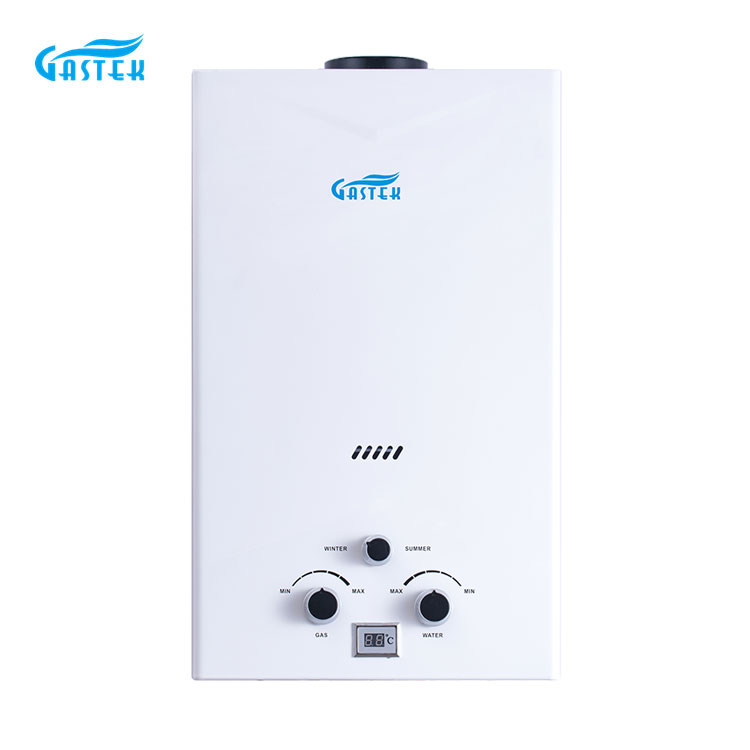

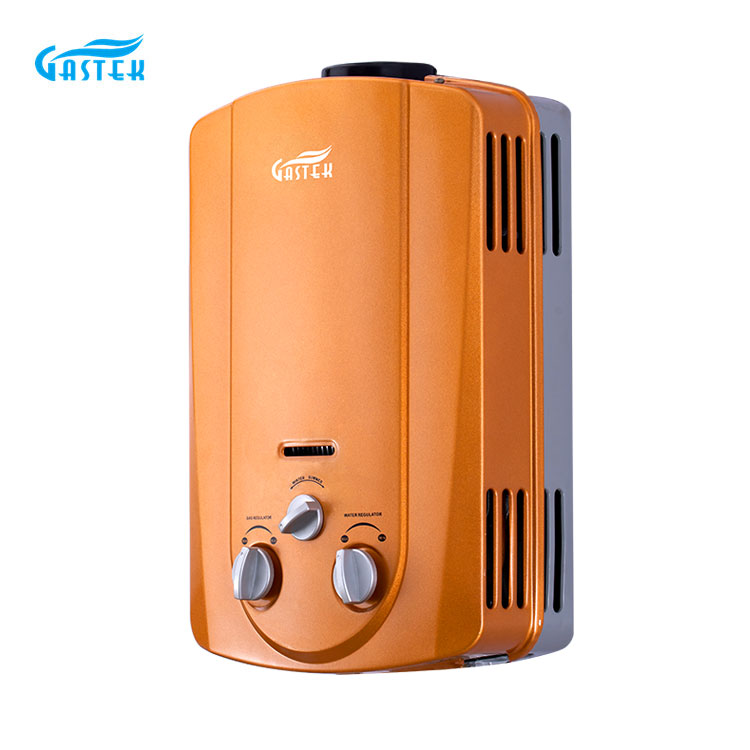

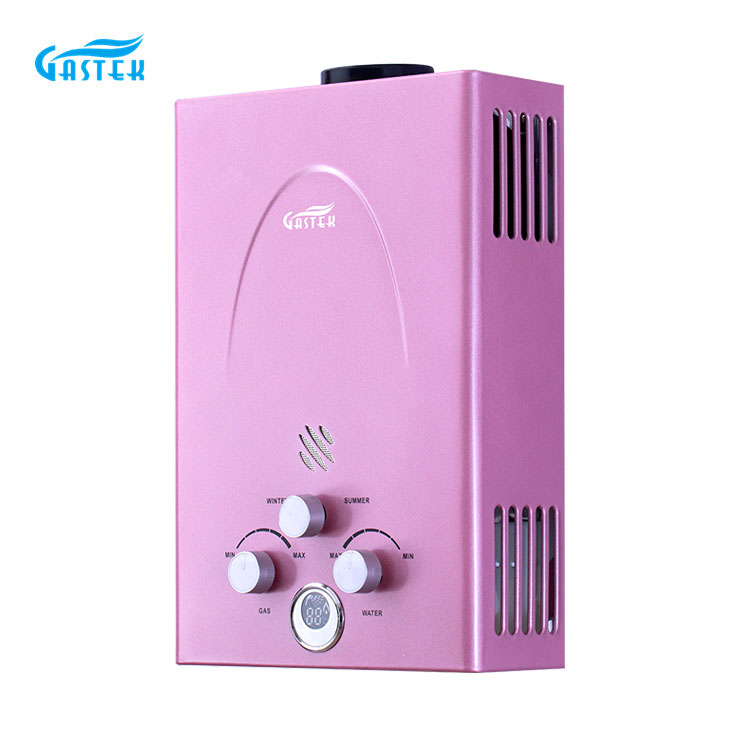

This 10L common flue type gas water heater can supply instant, endless, on-demand hot water. It’s wall mounted, with compact size, easy for installation. With flameout protection, Ignition failure protection, anti-freezing protection, over heating protection, etc. can ensure the family safety.

Send forespørsel

produktbeskrivelse

10L gas water heater U Series

Product Introduction

This 10L common flue type gas water heater can supply instant, endless, on-demand hot water. It’s wall mounted, with compact size, easy for installation. With flameout protection, Ignition failure protection, anti-freezing protection, over heating protection, etc. can ensure the family safety.

Product Parameter (Specification)

Water Flow(L/min)
T=25K
5L 6L 8L 10L 12L 14L 16L 18L
Rated heat load 10kW 12kW 16kW 20kW 24kW 28kW 32kW 36kW
Gas type NG/LPG
Ignition type Automatic pulse ignition
Flue pipe diameter Φ90mm Φ90mm Φ110mm Φ110mm Φ110mm Φ130mm Φ130mm Φ130mm
Applied water pressure  0.025-0.75Mpa
Power supply DC,3V
Gas Inlet G 1/2"
Water Inlet G 1/2"
Water Outlet G 1/2"
Production Dimension 440*300*138mm 440*300*135mm 520*320*168mm 550*330*188mm 610*350*188mm 650*400*188mm 700*440*200mm 700*440*200mm
Packing Dimension 525*360*200mm 525*360*200mm 630*370*225mm 635*395*245mm 710*410*245mm 745*455*250mm 800*495*260mm 800*495*260mm
G.Weight 5.5kgs 5.9kgs 7.8kgs 9.2kgs 10.5kgs 13.2kgs 15.3kgs 16.3kgs
Loading Capacity
(20'GP/40'GP/40'HQ)
800pcs/1600pcs/1900pcs 550pcs/1100pcs/1300pcs 490pcs/980pcs/1150pcs 420pcs/840pcs/1000pcs 350pcs/700pcs/810pcs 280pcs/560pcs/650pcs

Product Details

1) Wide range, endless, tankless, instant hot water capacity from 5L-18L

2)  Multi-safety protections, like over-heating protection, Anti-dry combustion protection, Automatic electrical pulse ignition device, Flame out protection, Automatically shut off when combustion is incomplete.

3) Different selective temperature display;

4) Different selective knobs;

5) Winter/summer adjustment, make hot water temperature more comfort

6) 20 or 40 min timer available

7) 2 batteries powered

Packing and Shipping

Selective knobs and displays
